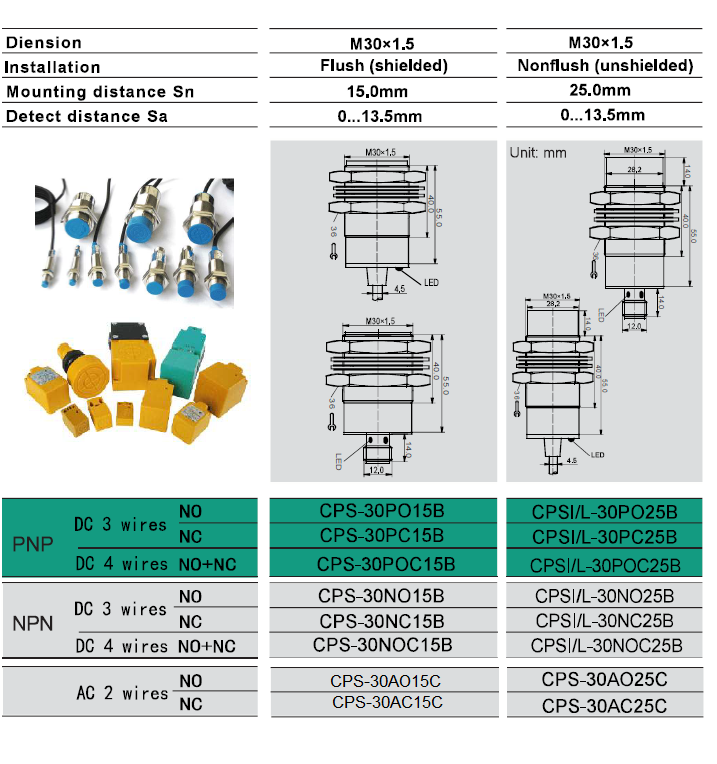

  • Dimension
  • Wires Connection
  • Attentions

Features of IBEST M30 Capacitive Proximity Sensor :

* Size: M30 cylinder type, length: shielded 55mm, unshielded 70mm.

* Housing: standard nickle plated brass housing, plastic housing is available also.

* Standard sensing object: metal or non-metal objets. (Except thin paper, thin plastic or thin polybag...etc)

* Detect distance: Shielded/Flush: 10-15mm, Unshielded/Non-flush: 20-25mm.

* DC 3wire or 4 wires, PNP or NPN, NO or NC or NO+NC output, or AC 2 wire NO or NC output.

* Power supply: DC 10-30V supply or AC 90-250V supply.

* Connection: with 2 meter PVC cable. (or Rubber bendable cable.)

* With LED operation indicate lamp, easily identifiable.

* Protection rating: IP67, water resistant, proof of oil, water acid, alkaline.

* Reliable quality to replace famous brands, such as: Omron, Sick, Bafflus...etc.

* CE approved.

* Widely applied in measuring, Counting, Rpm measuring in mechanism, water level or other

Fluid level, paper manufacture light industry, chemical etc.
