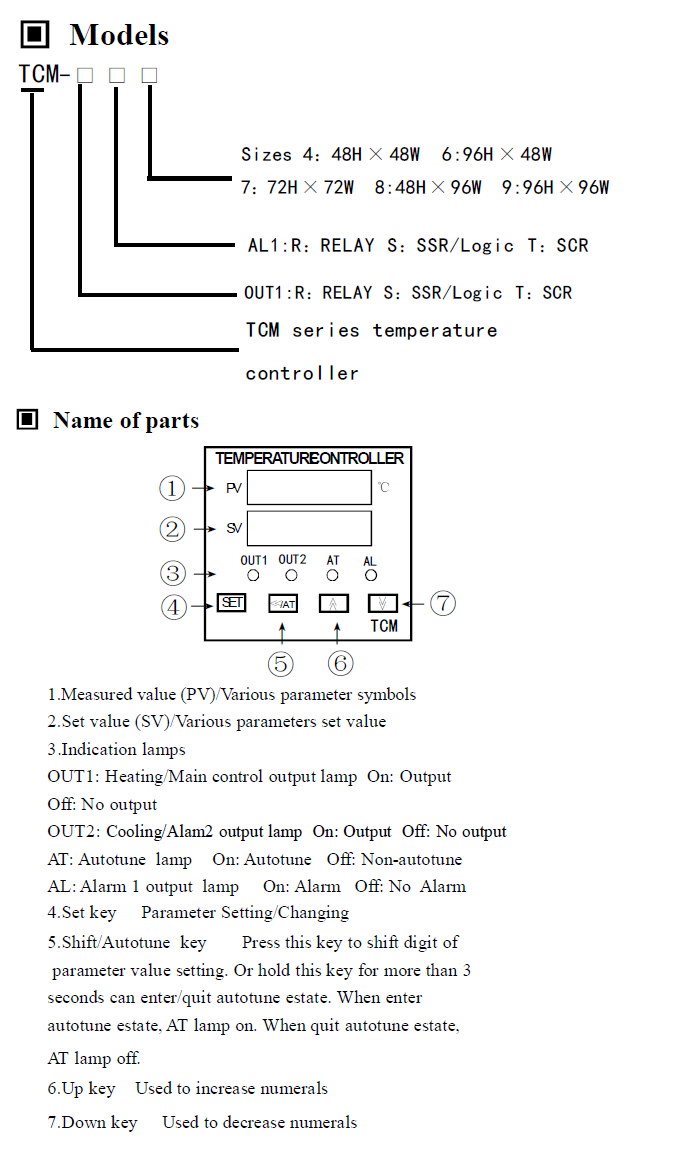

  • Model Name
  • Specifications
  • Dimension
  • Wires Connection
  • Attentions

* TCM hot selling temperature controller,dual line 4 digit LED display.
* Free input: TC(K, E, J, T); RTD(Pt100, Cu50), configurable by software.
* Micro processor PID temperature controller, with built in SMT technology and digit filter circuit.
* Auto-tune PID, Fuzzy PID, ON-OFF function; Cooling/heating function.
* Soft buttons, easily operate; High precision and anti-interference.
* Control output: Relay or SSR(logic) or SCR or 4-20mA output.
* Optional instrument size: 48W*48H/48W*96H/72W*72H/96W*96H optional by user.
* AC 90-250V power supply. (or special order DC 24V)
* Application ranges: Food&beverage, oven, furnance, plastic extruder, chemicals processing, heating process, packing& packaging & Printing machine...etc. (For temperature measuring and control)

Product featuresTemperature Controller

Before installing and using this instrument, please read this user manual carefully in order to operate the unit in the appropriate conditions to avoid any damage. Keep this user manual for future reference.

1- When clean the instrument, make sure the power is at “OFF” status.
2- To clean out the dust or dirt on the instrument screen, please use soft cloth or cotton papper.
3- Do not touch the instrument screen by hard objects to avoid scratch of the screen.
4- Do not use screw driver or hard pin to touch the soft buttons on the faceplate.
5- From the date of shipping, if there are any damages or fault within 18 months, the factory is bond to matain the units. But if the danages re coused by inappropriate operation by use, the factory doesn’s.The instrunent should be stock in the dry ,non gas environment.
