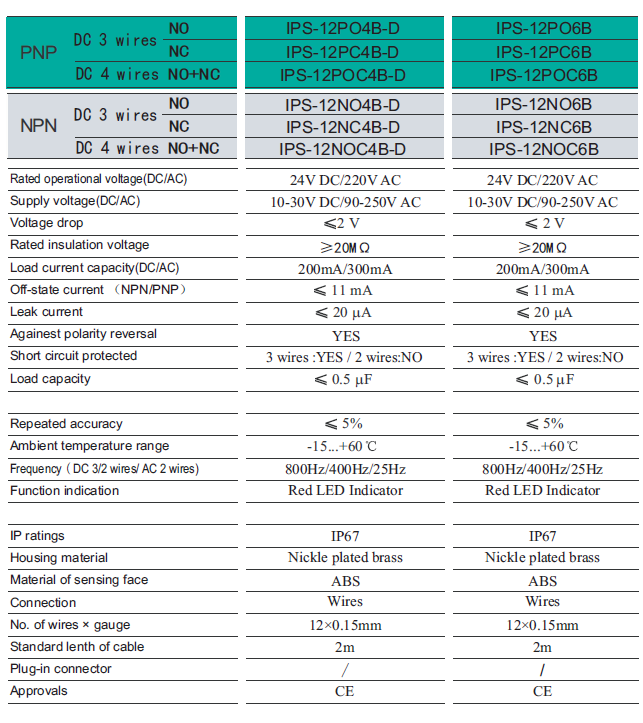

* M12 Extended Longer distance inductive Proximity Sensor Switch, 12mm cylinder type, brass nickle plated housing or ABS plastic housing.

* Standard lengh of sensor: cable type(55mm), conenctor type(60mm).

* Detect distance: shielded(flush) 3.5-4mm or unshielded(non-flush) 5.5-6mm.

* Detect target objects: metal objects, iron,steel, stainless steel,copper..etc.

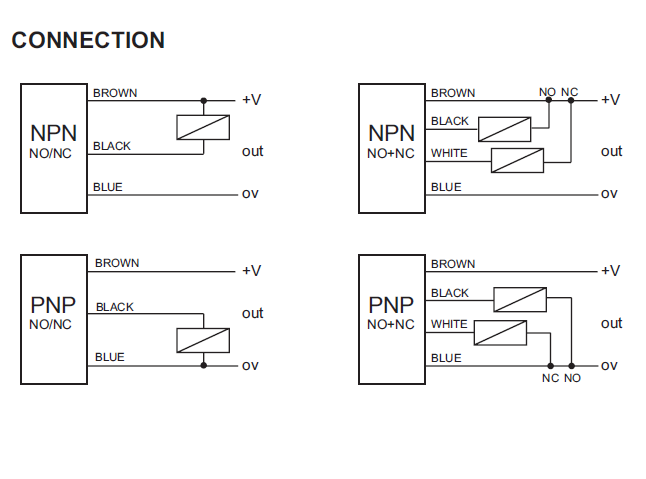

* Output: NPN or PNP, NO or NC or NO+NC output.
* Power supply: DC 3-wire(10-30Vdc), DC 4-wire(10-30Vdc). (DC5V can be specially ordered)
* Connection: with 2M cable directly or M12 4 pin connector.
* With red LED operation indicator, easily identifiable.
* IP67 ratings, waterproof, proof of oil, water acid, alkaline.
* Standard sensing object: inductive sensor: ferrous metals; capacitive sensor: metal or non-metal objects.
* Over current and short circuit protection, againstpolarity reversal.
* Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.
