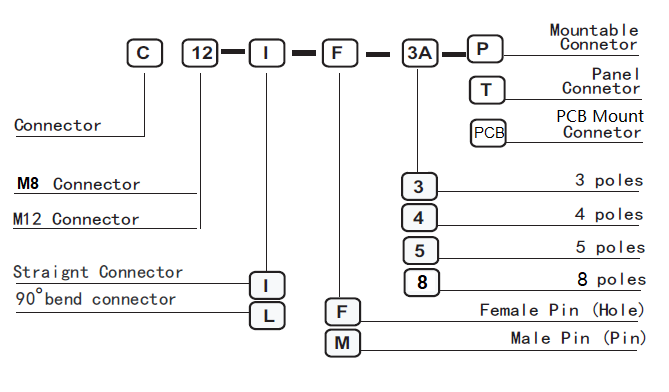

  • Model Name
  • Specifications
  • Dimension
  • Wires Connection
  • Attentions

M12 Panel Mount Connector:

* M12*1 thread international standard, female and male connector.

* Panel mounting type, user can choose soldering wires or without wires.

* Straight connector only.

* 3 pins or 4 pins or 5 pins or 8 pins are available for option.

* Capacity: AC/DC 5-220V, AC 3A.

* IP67 ratings, water proof.

* Material: gold plated pins, nickle plated brass screws and housing.

* Application: used for connecting sensors or juntion boxes for electrical and automation fields,

Machineries, food industries, plastic injection machines...etc.

Product featuresM12 connector


1. If wires is needed, please indicate when ordering.

2. The cable connector is A code, is need D code, please indicate when ordering.

3. For other special request, please communicate with sales people.
