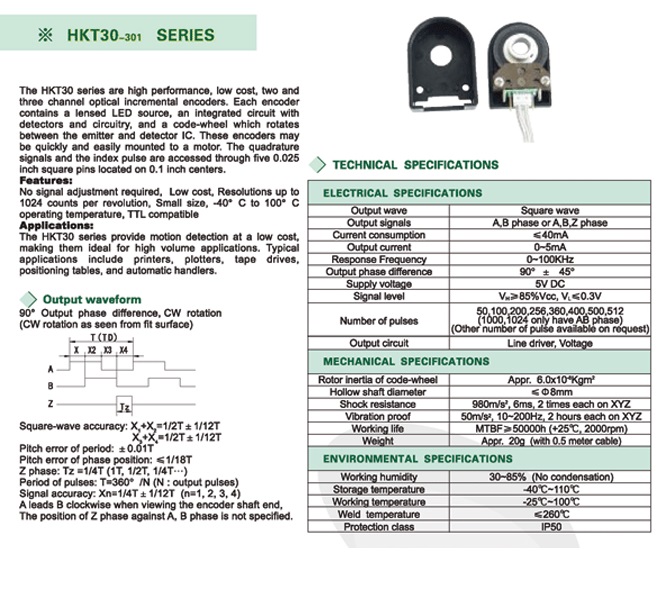

* HKT30-301 designed for motors, with ABZ 3 chanels or ABZA-B-Z- 6 channels.
* Quick and easy to be mounted to a motor.
* Hollow shaft size: 3mm, 4mm, 5mm, 6mm, 6.35mm, 8mm.
* No. of pulse: 100/200/256/300/360/400/500/1000/1024 PPR.
* Output:5V Voltage output, NPN open collector or 5V linedriver output.
* Supply voltage: DC5V or DC 12V or DC 24V supply.
* Output wave: square wave, Output current: 0~5mA.
* Response requency: 0~20K/50K HZ
* Protection IP50.
