M12 Female Cable Connector 3/4/5 Poles-IBEST ELECTRICAL CO.LTD

Features
Model Name
Specifications
Dimension
Wires Connection
Attentions

Female straight
Female angled
Male straight
Male angled

M12 moulded injection cable connector:

* M12 female and male cable connector, injected with 2M cable. (Aditional cable length can be ordered)

* 90 degree angled type or straight connector.

* 3 pins or 4 pins or 5 pins or 8 pins are available for option.

* Capacity: AC/DC 5-220V, AC 3A.

* IP67 ratings, water proof.

* Cable material: PVC.

* Application: used for connecting sensors or juntion boxes for electrical and automation fields,

Machineries, food industries, plastic injection machines...etc.

: Product featuresM12 connector

C12 SPECS.png

C12 size.png

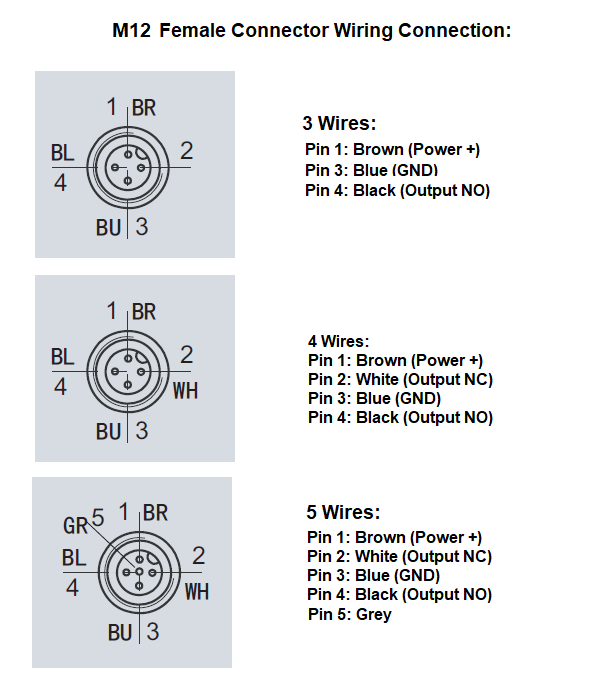

M12 Female Connection.png

Notice:

1. Length of cable can be specially ordered.

2. The cable connector is one end with connector, the other end is open wires.

3. For both ends with connector, buyer can specify when ordering.

4. Standard cable material is PVC.

5. For other special request, please communicate with sales people.

Download :
