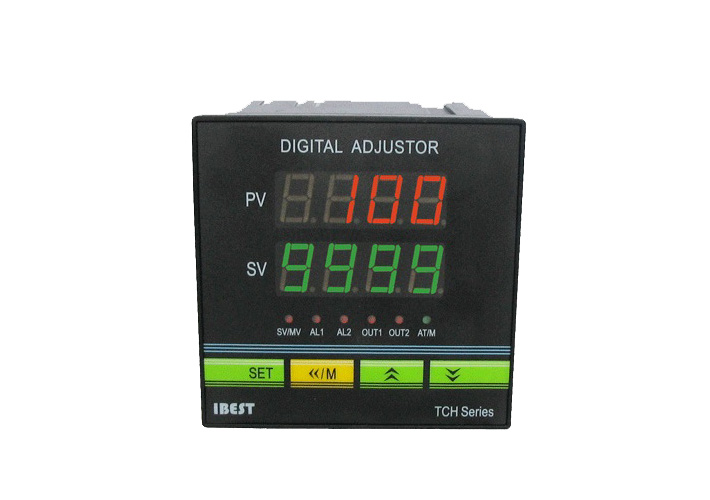

* TCH Micro processor digital adjustor, with built in SMT technology and digit filter circuit.
* Dual line 4 LED digit display: upper LED : red; lower LED: green.
* Various control output mode for options: relay or SSR or SCR otuput, or Analog 4-20mA or 0-10V output, or PWM time curve process control..etc.
* With 12 segment time curve control, user can set time and temperature range via soft bottons.* Soft buttons, easily operate.
* Optional input signals: TC, RTD, mA, mV, A, V, Rt.
* Up to 3 alarm output, output modes selectable by software.
* With DC 24V transmitter supply.
* Measuring accuracy: ≤±0.3%F.S±2 digit(under normal conditions).

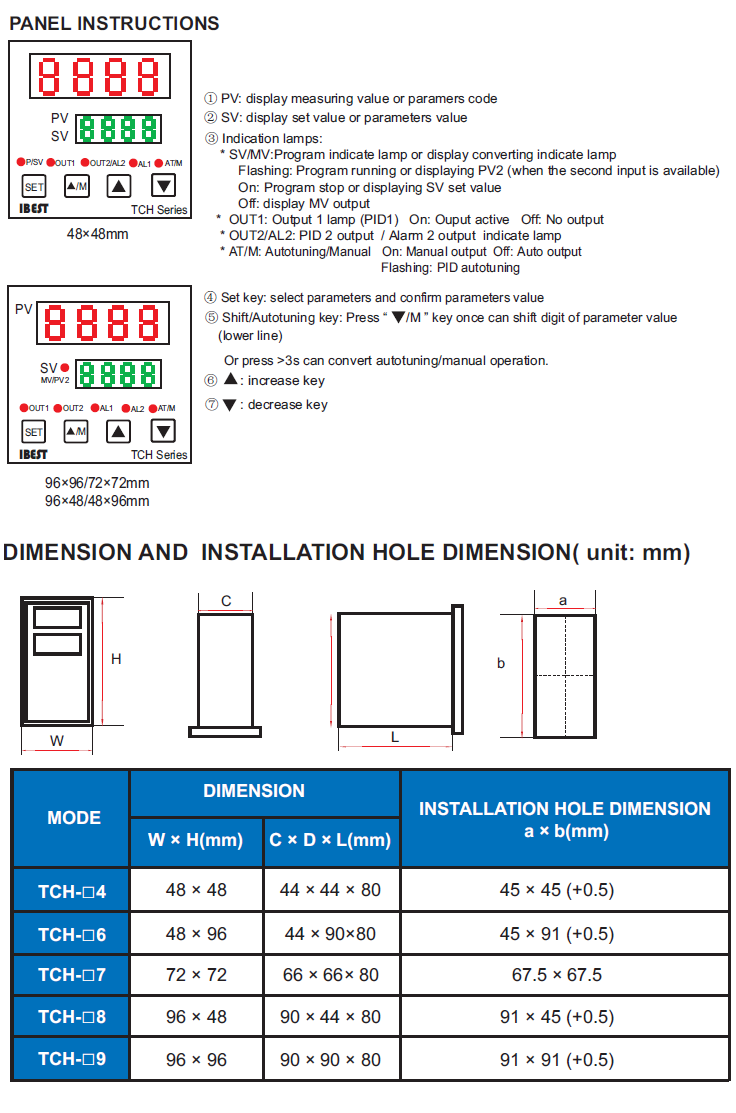

* Optional instrument size: 48W×48H、48W×96H、72W×72H、96W×48H、96W×96H.(mm).
* Apllication ranges: food&beverage; oven, furnance, plastic extruder,chemicals processing, heating process...etc.(can measure temperature, humidity,level,
weight, pressure...etc.(with differenct sensors)
