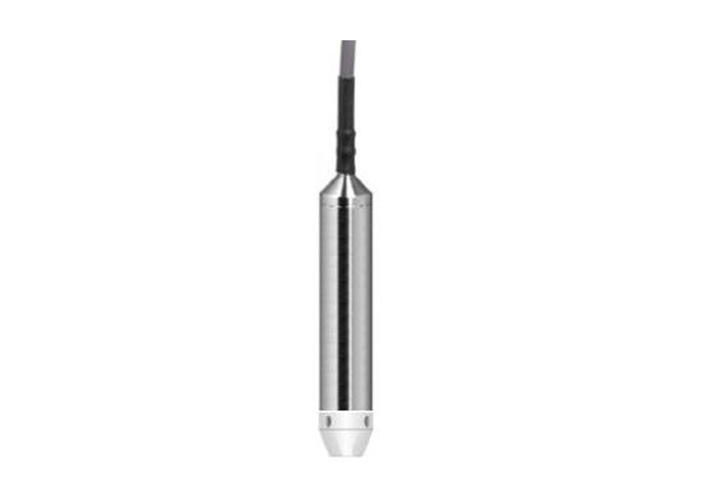

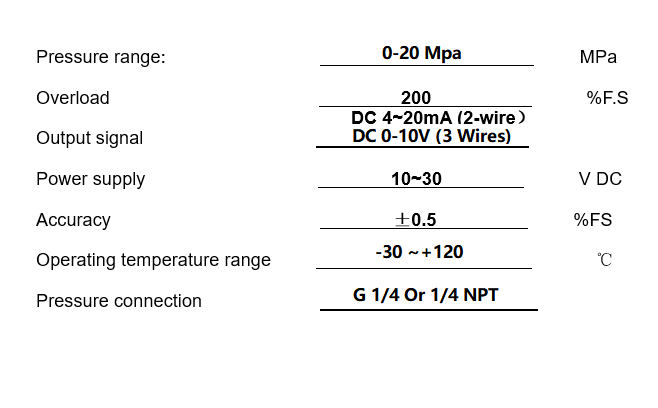

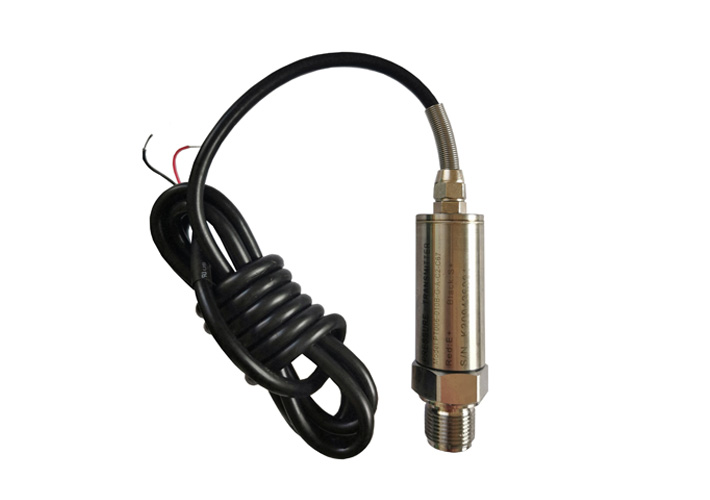

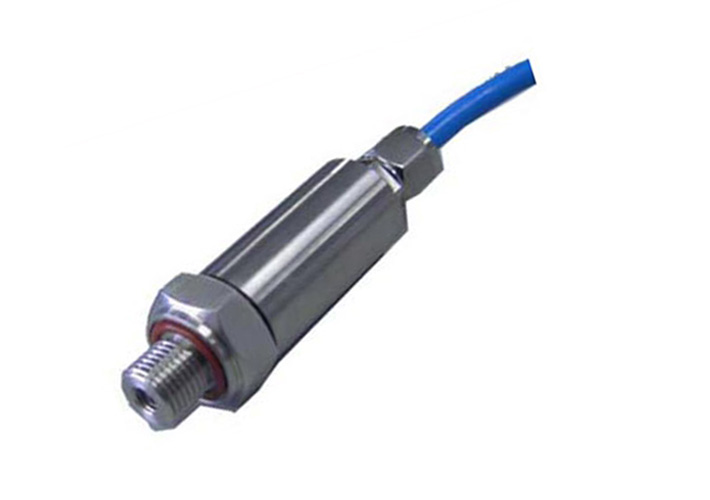

* PT007 Ceramics High Temperature Pressure Sensor Transmitter.

* Process media: ceramics pressure sensor transmitter, high temperature range: -30~+120 C degrees.
* Gauge pressure of air, gases and liquids compatible with SU304.
* Range: 10Kpa ~800 Kpa, 1 Bar ~20 Bar, 1Mpa~20Mpa.(please specify when ordering)
* Output: 4~20mA DC (2wire) or 0~10V DC (3 wires).
* Power: 10~30V DC (or DC5V).
* Accuracy: 0.5 class.
* Overload: 150%-200% of standard range.
* Housing material: stainless steel 304U.

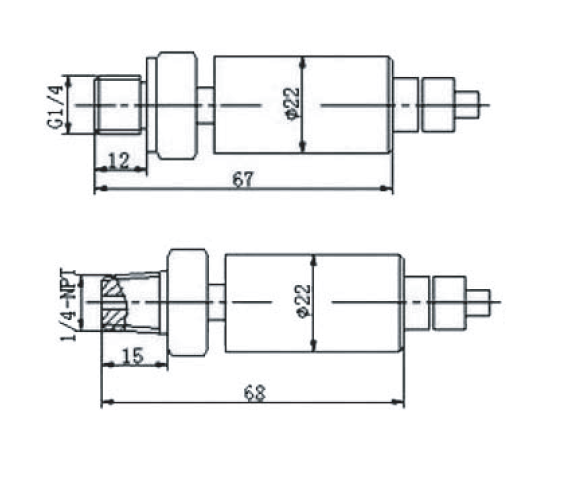

* Pressure connection: M20×1.5; M12×1.0; G1/4; G1/8; 1/4 NPT.
* With 2M cable, or Hirsman connector or M12 4 pin connector.
* Electrical connection: cable or M12 connector or hirschmann.
* Long term stability: ≤0.2% F.S/Year; high anti-interference.
* Widely applied for measuring and controlling gases and liquids pressure in the fields of petroleum, Metallurgy, power system, Water cons ervancy, environmental protection...etc.compatible with 304U.

Product featuresPressure Transmitter

Thread Size for options:
