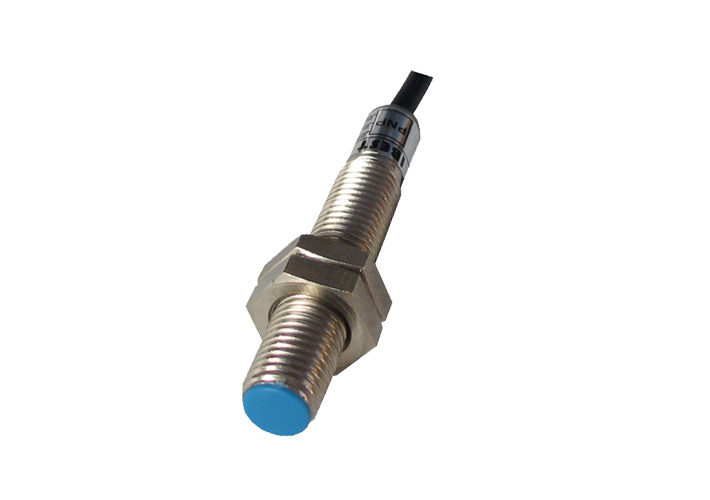

* M8 Extended Longer distance inductive proximity sensor switch, 8mm cylinder type, brass nickle plated housing.
* Detect distance: shielded(flush) 1.5-1.6mm or unshielded(non-flush) 3.2-4mm.

* Standard size: cable type(45mm), Connector type (55mm).

* Detect target objects: metal objects, iron,steel, stainless steel,copper..etc.
* Output: NPN or PNP, NO or NC output.
* Connection: with 2M cable directly or with M8 3 pin connector(or with M12 3 pin connector).
* Power supply: DC 3-wire(10-30Vdc). (DC5V can be specially ordered).
* With red LED operation indicator, easily identifiable.
* IP67 ratings, waterproof, proof of oil, water acid, alkaline.
* Standard sensing object: inductive sensor: ferrous metals; capacitive sensor: metal or non-metal objects.
* Over current and short circuit protection, againstpolarity reversal.
* Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.
