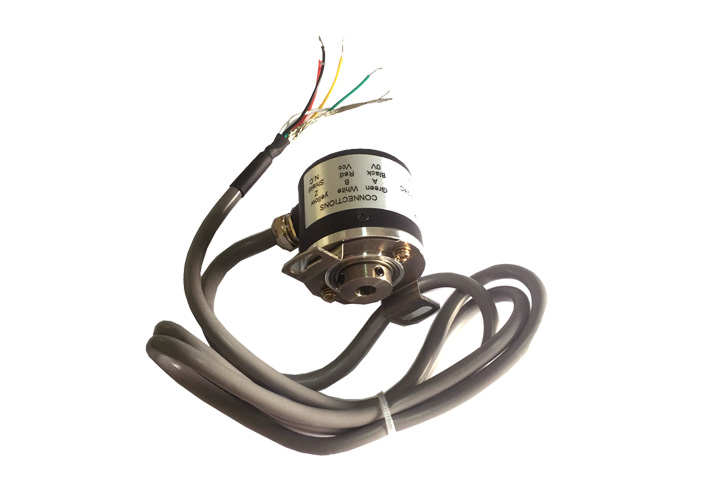

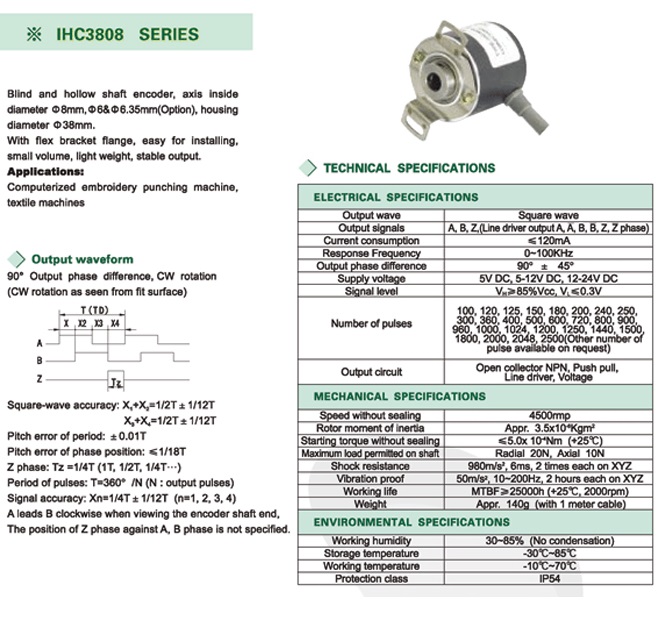

* IHC3808 Semi Hollow Shaft Optical Rotary EncoderOutside dimension: 38mm.
* Semi Hollow through shaft: 6mm or 8mm.
* No. Of pulse per revolution: 20, 50, 100, 200, 300, 500, 1000, 1024, 1200, 2000, 2500,3600 PPR...Etc.
* DC 5V, DC 12~24V, DC 5-24V.
* Output: NPN or PNP open collector, Push Pull, Voltage output, DC5V linedriver output, DC12-24V TTL output.
* Suitable for operating conditions with heavy load., mainly used for industrial automatization.
* Excellent dynamic characteristic, convenient installation reliable.
