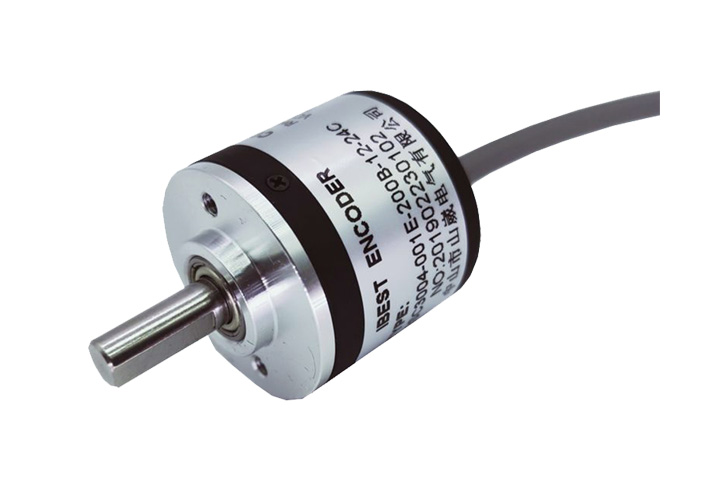

* Small Solid Shaft Incremental Rotary Encoder, outside diamter:30mm; Solid shaft: 4mm.
* Output: ABZ signals or ABZA-B-Z- signals, for textile or Plastic Injection machine or other automatic machines.
* DC 5V~24V power supply.
* No. of impulse: 50/100/200/300/360/500/1000 PPR.
* Output: open collector NPN or PNP, or Push Pull, Voltage output, or 5V linedriver output.
* Output wave: square wave.
* Response requency: 0~50K HZ
* Output phase difference: 90 degree +/- 45 degree.
* Rotor inertia of code wheel: Appr. 3.5*10(-6)Kgm2
* Starting torque without sealing: < or = 1.5X, 10-3 Nm (+25 C)
* Max. torque without sealing: radial 20N, Axial 10N.
* Shock resistance: 980M/S2, 6ms, 2 times each on XYZ
* Viration proof: 50/ms2, 10~200Hz, 2 hours each on XYZ
* Working life: MTBF> or = 25000h (+25 C, 2000 RPM)
* Protection IP54.
