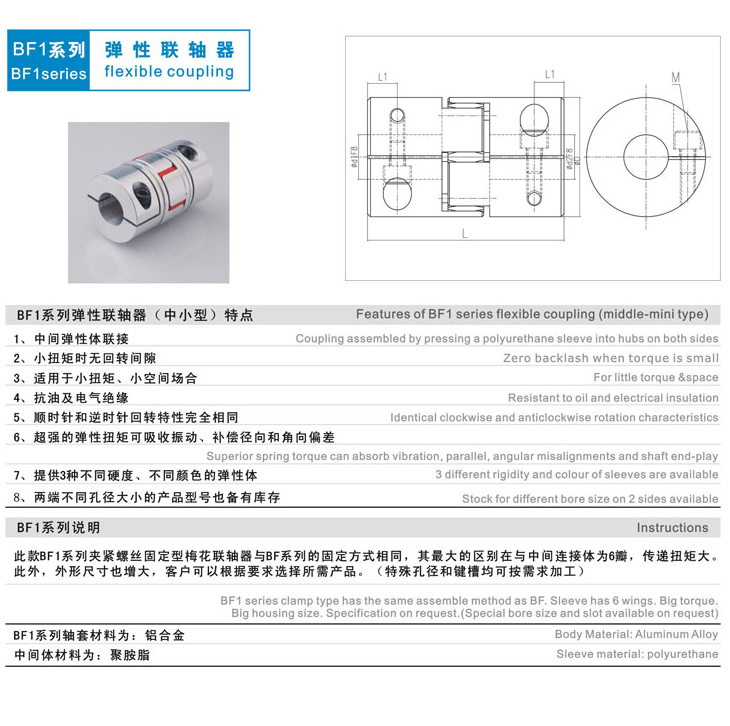

* BF1 series flexible coupling tightens with bolt.Easy to assemble and disassemble.No damage will be caused to shaft. (Sepecial bore size and slot available on request).
* Body Material:Aluminum Alloy, Sleeve material:polyurethane.

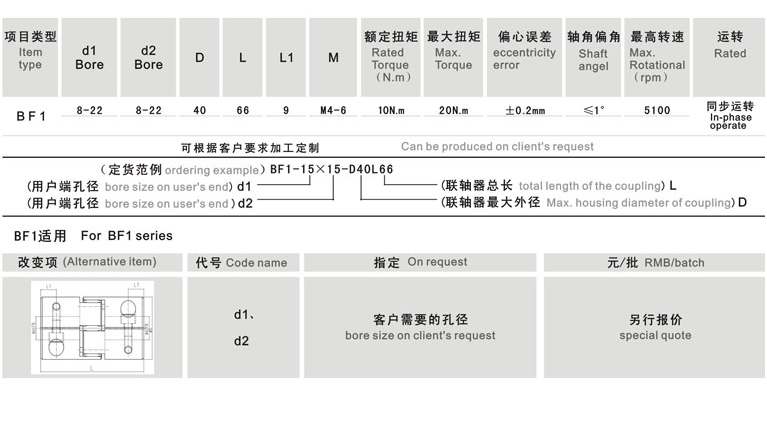

* Shaft bore size: 6mm, 8mm,10mm, 12mm, 14mm, 15mm or 19mm, 20mm . (For other size, please indicator when order.)

* Outside diameter is 40mm, length is 50mm or 66mm. (For other size, please indicator when order.)

* Coupling assembled by pressing a polyurethane sleeve into hubs on both sides.
* Zero backlash.
* For little torque &space.
* Resistant to oil and electrical insulation.
* ldentical clockwise and anticlockwise rotation characteristics.
* 3 different rigidity and colour of sleeves are available.
* Superior spring torque can absorb vibration.parallel.angular misalignments and shaft end-play.
* Stock for different bore size on 2 sides available.

Product featuresFlexible Coupling
