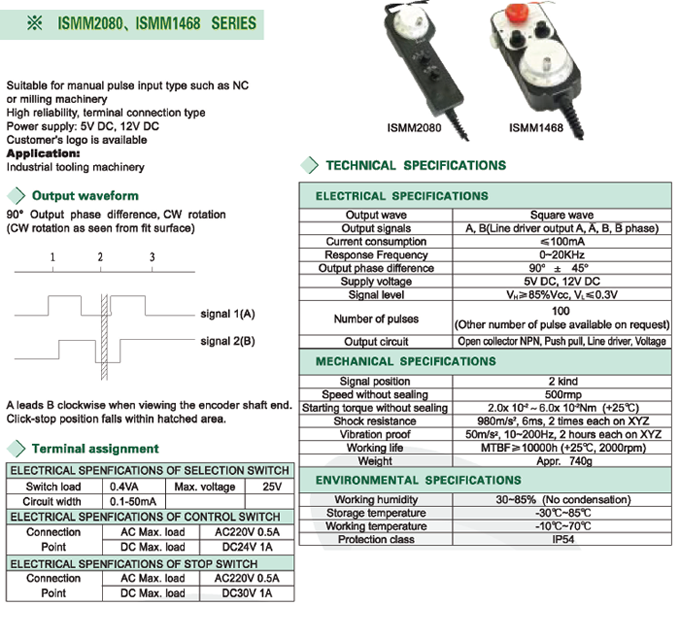

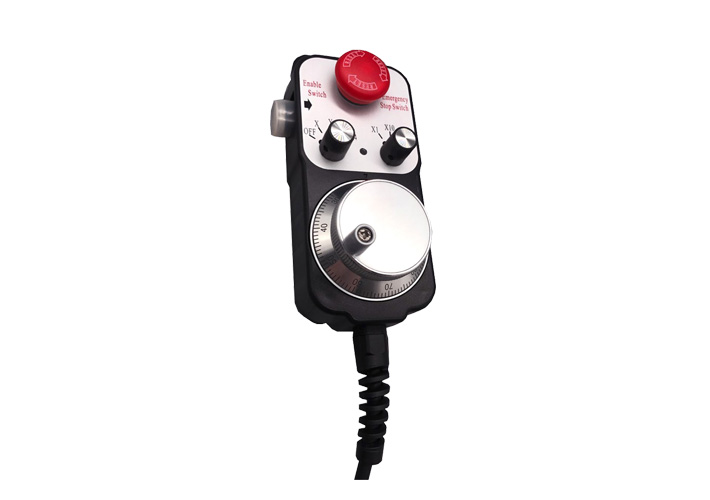

* ISMM1468 Manual encoder with plastic box ane encoder, suitable for manual pulse input type as CNC or milling machinery.

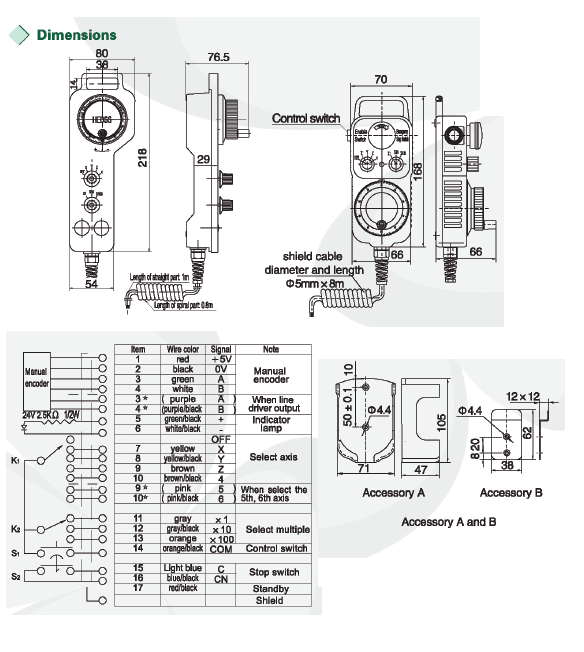

* Outside dimension: 70L*168H*66W mm.
* DC5V or DC 12V or DC5-24V power supply.
* No. of impulse: 100 PPR.
* Designed for motors, with AB chanel or ABA-B-.
* Output wave: square wave.
* Response requency: 0~20K HZ
* Output phase difference: 90 degree +/- 45 degree.
* Output: open collector NPN, or TTL or Linedriver or Voltage.
* Speed without sealing: 500RMP.
* Starting torque without sealing: < or = 1.0X, 102 Nm (+25 C)
* Shock resistance: 980M/S2, 6ms, 2 times each on XYZ
* Viration proof: 50/ms2, 10~200Hz, 2 hours each on XYZ
* Working life: MTBF> or = 10000h (+25 C, 2000 RPM)
* Protection IP54.
