  • Features

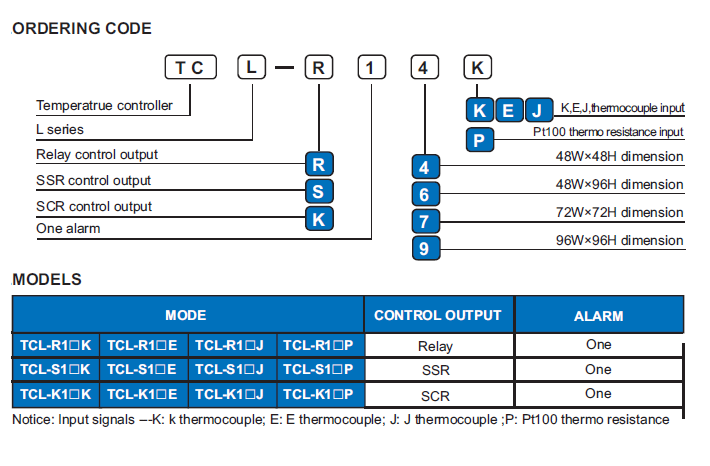

  • Model Name

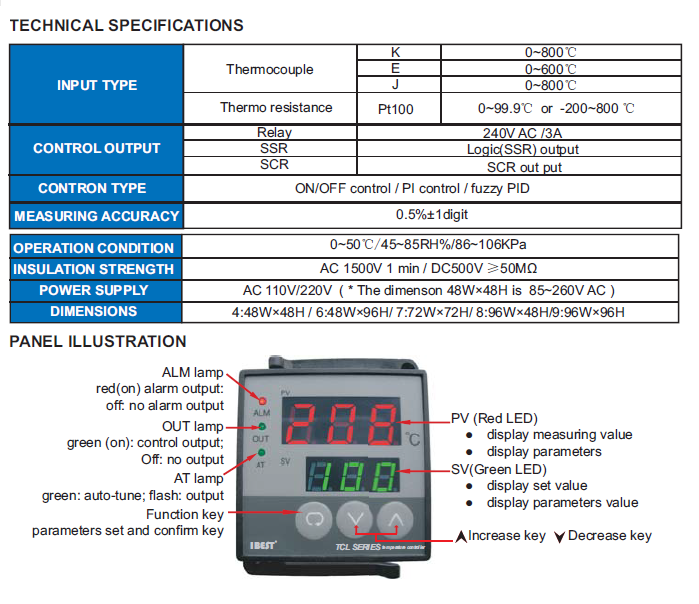

  • Specifications

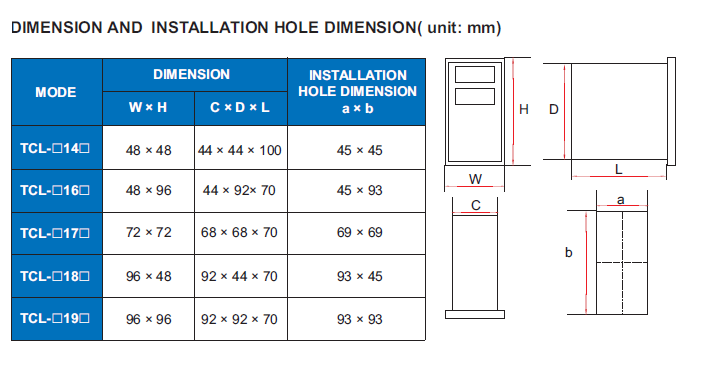

  • Dimension

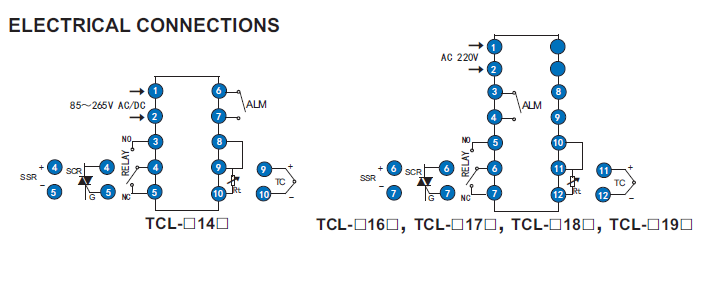

  • Wires Connection
  • Attentions

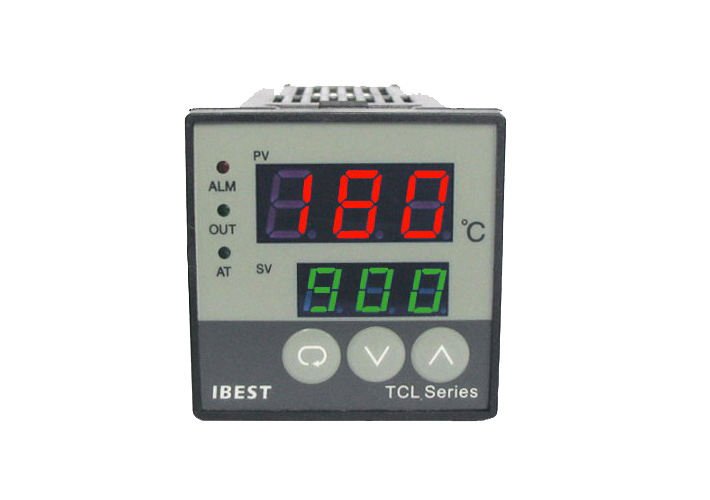

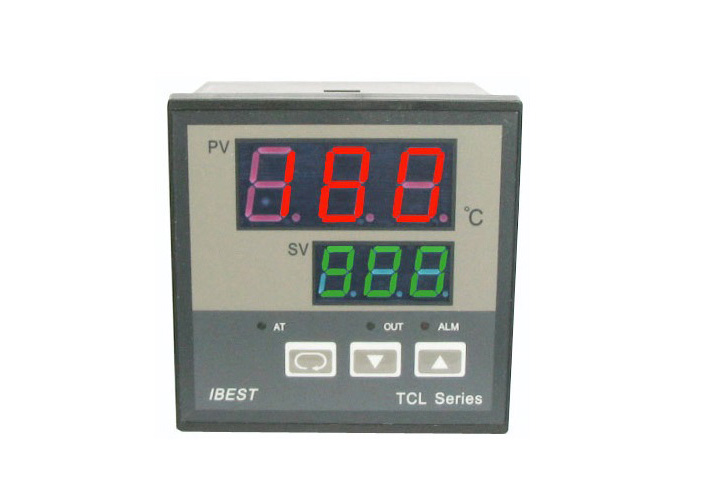

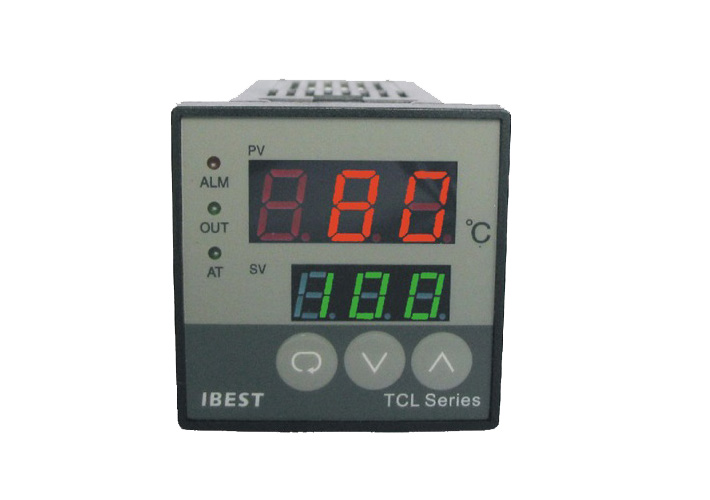

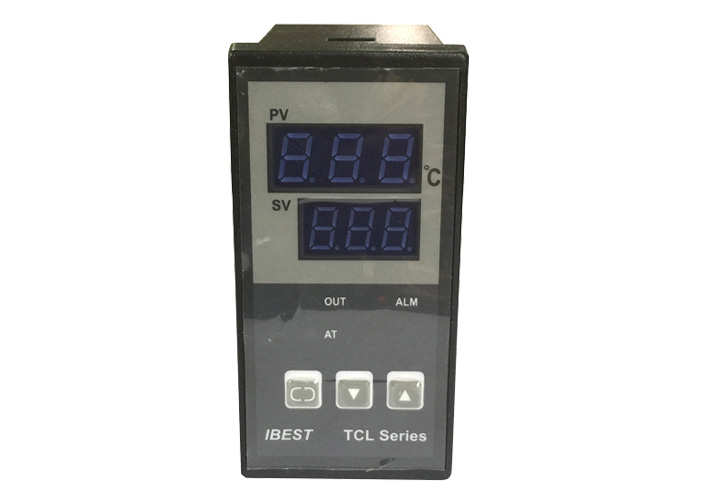

* TCL type economic price temperature controller, dual line 3 LED digit display: upper LED : red; lower LED: green.
* PID temperature controller or ON/OFF control; built with SMT technology
* Soft buttons, easily operate .
* Auto tune function.
* Single input signals: thermocouple: K, E, J; RTD: Pt100 or Cu50. (please select one signal only when ordering)
* Optional control output: Relay,SSR/logic,SCR output.
* Alarm output: 1 high or low alarm.
* Measuring accuracy: 0.5%F.S +/-1 digit (under normal conditions)
* Optional instrument size: 48W*48H; 48W*96H; 72W*72H; 96W*96H.
* Apllication ranges: food&beverage; oven, furnance, plastic extruder,chemicals processing, heating process...etc., for temperature measuring and control.

Product featuresTemperature Controller

Before installing and using this instrument, please read this user manual carefully in order to operate the unit in the appropriate conditions to avoid any damage. Keep this user manual for future reference.

1- When clean the instrument, make sure the power is at “OFF” status.
2- To clean out the dust or dirt on the instrument screen, please use soft cloth or cotton papper.
3- Do not touch the instrument screen by hard objects to avoid scratch of the screen.
4- Do not use screw driver or hard pin to touch the soft buttons on the faceplate.
5- From the date of shipping, if there are any damages or fault within 18 months, the factory is bond to matain the units. But if the danages re coused by inappropriate operation by use, the factory doesn’s.The instrunent should be stock in the dry ,non gas environment.
