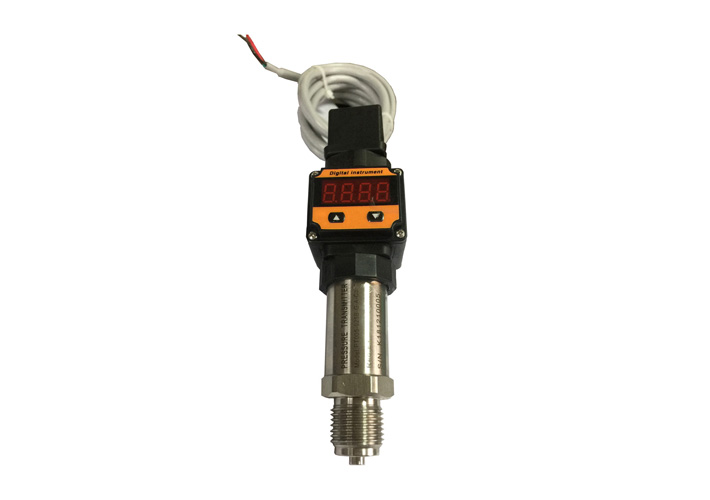

* PT003 Silicon Type High Quality Pressure Transmitter, process media: gauge pressure of gases and liquids compatible with SS316L.

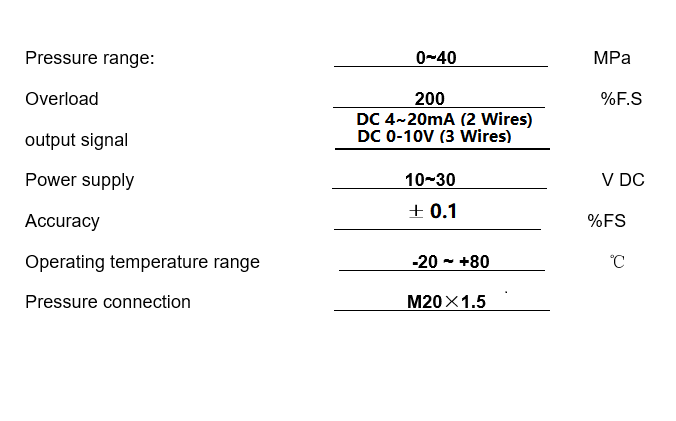

* Accuracy: 0.1 class.

* Measuring Range: At customer's requirement, 0-40Mpa. (0.5, 1, 1.5, 10, 16, 25, 40, 60, 160, 250, 400, 600, 800 Kpa
1, 2, 5, 10, 20, 30, 50, 60, 80, 100 Mpa)
* Output: 4~20mA DC (2wire) or 0~20mA or 0~5 DC (3 wires).
* Power: 10~30V DC (or DC5V).
* Overload: 150%-200% of standard range.
* Housing material: stainless steel 316L.
* Pressure connection: M20×1.5; M12×1.0; G1/4; G1/8; 1/4 NPT.
* With 2M cable, or Hirsman connector or M12 4 pin connector.
* Electrical connection: cable or M12 connector or hirschmann.
* Long term stability: ≤0.2% F.S/Year; high anti-interference.
* Widely applied for measuring and controlling gases and liquids pressure in the fields of petroleum, Metallurgy, power system, water cons ervancy, environmental protection...etc.compatible with SS316L。
