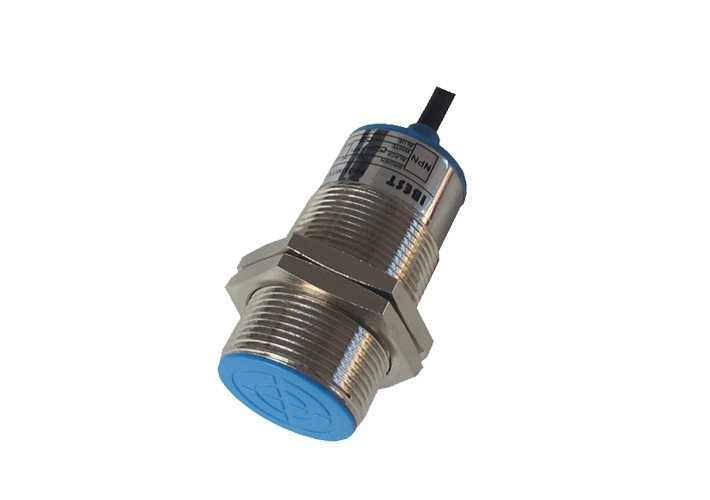

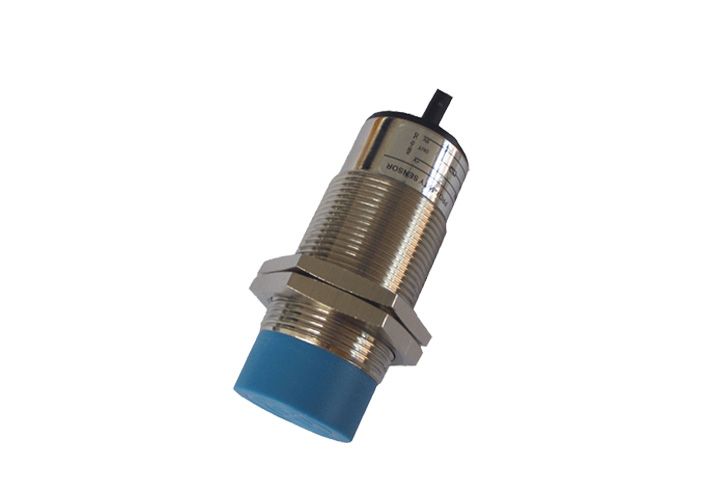

* M30 inductive proximity sensor switch, 30mm cylinder type, brass nickle plated housing or ABS plastic housing.
* Detect target objects: metal objects, iron,steel, stainless steel,copper..etc.

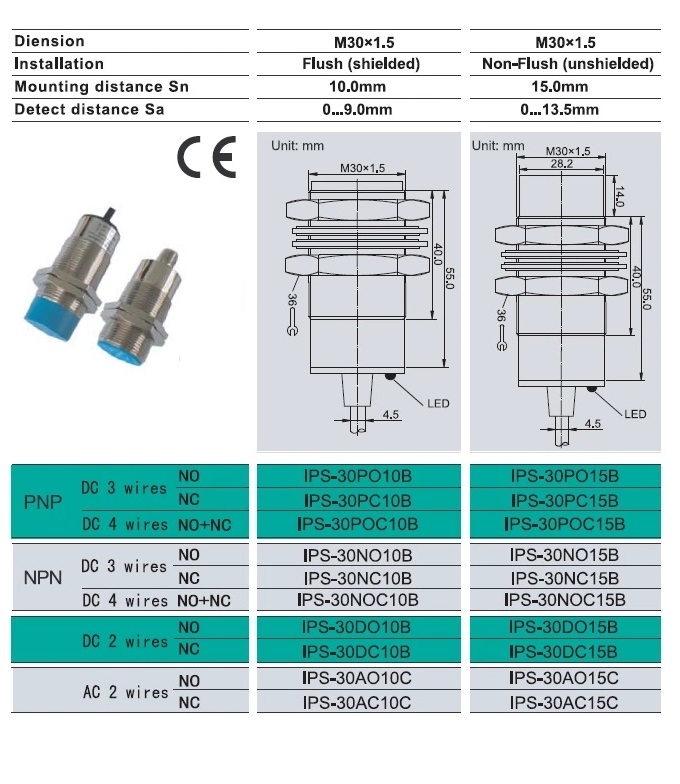

* Detect distance: shielded(flush) 10mm or unshielded(non-flush) 15mm.
* Output: NPN or PNP, NO or NC or NO+NC output; DC 2 wires or AC 2 wires.

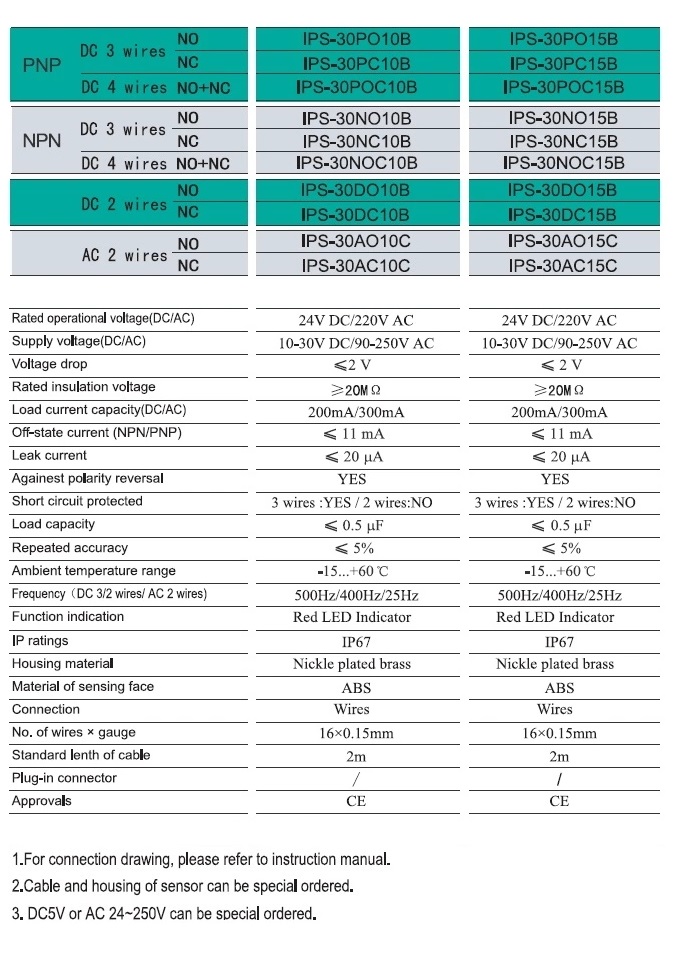

* Power supply: DC 2-wire(10-30Vdc), DC 3-wire(10-30Vdc), DC 4-wire(10-30Vdc), AC 2-wire (90-250 AC). (DC5V or AC24V can be specially ordered)

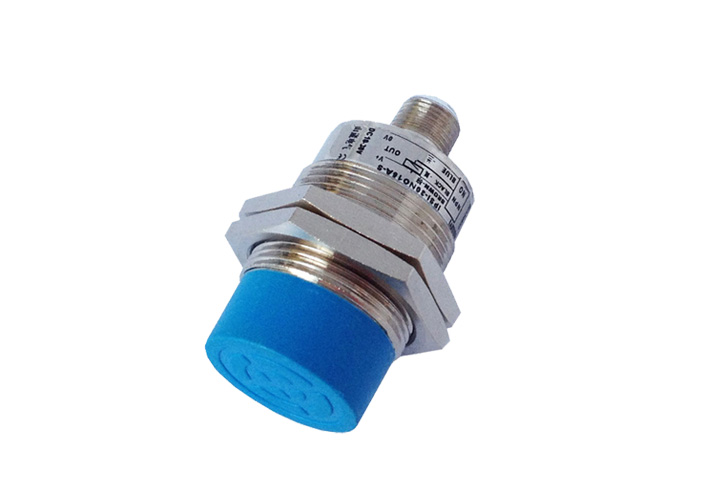

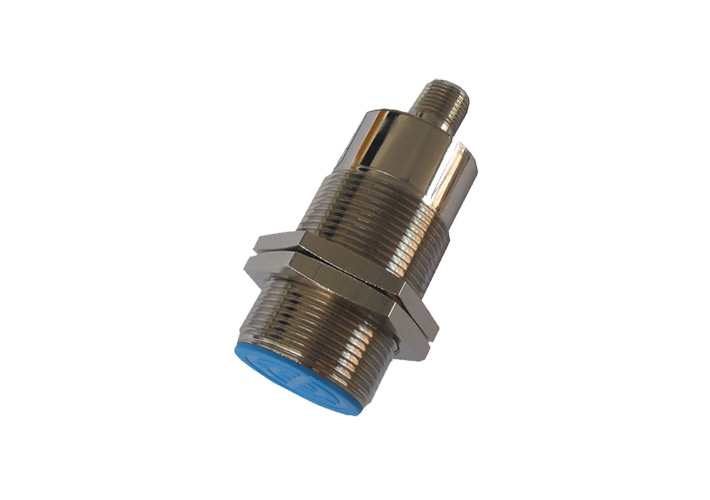

* Connection: with 2M cable directly or M12 4 pin connector.
* With red LED operation indicator, easily identifiable.
* IP67 ratings, waterproof, proof of oil, water acid, alkaline.
* Standard sensing object: inductive sensor: ferrous metals; capacitive sensor: metal or non-metal objects.
* Over current and short circuit protection, againstpolarity reversal.
* Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.


Product featuresM30 proximity sensor
